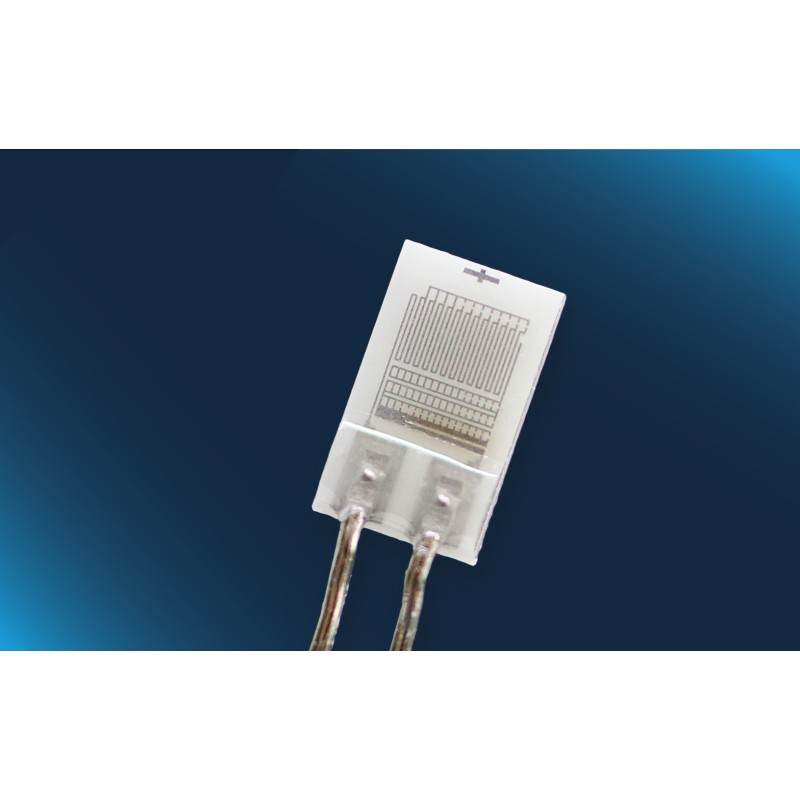

Pt1000 class F0.15 up to 600°C with optimized ESD design
Pt 1000 Ohm -200°C to +600°C, 10mm long NiPt wire
Platinum Temperature sensor size 2.5 x 1,6 x 1.1 mm with ESD-optimized design
Product Name
P1K0.216.6W.A.010
Nominal resistance
1000 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.5 x 1.6 x 1.1 mm
Tolerance/class
IEC 60751 F0.15 (IST AG reference class A)
Connection type
Pt/Ni-wire, Ø 0.2 mm
Wire length
10 mm
Special
ESD optimized design (IEC/EN 61000-4-2)
