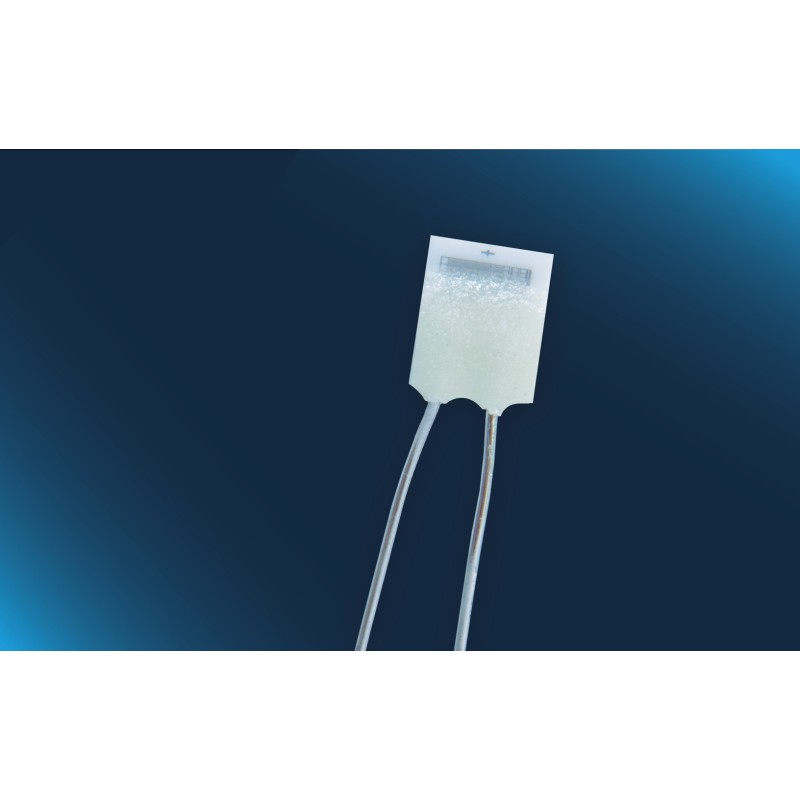

Standard Pt100 (232) class F0.3, with optimized ESD design
Thin-film platinum, ESD optimized, 100 Ohm RTD component with Pt/Ni-wires
Platinumg temperature sensor component -200 °C to +600 °C, 2.3 x 2.0 mm, 10 mm wires
Product Name
P0K1.232.6W.B.010
Nominal resistance
100 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.3 x 2.0 x 1.1 mm
Tolerance/class
IEC 60751 F0.3 (IST AG tolerance class B)
Connection type
Pt/Ni-wire, Ø 0.2 mm
Wire length
10 mm
Packaging
Blister
replaces former 100116
