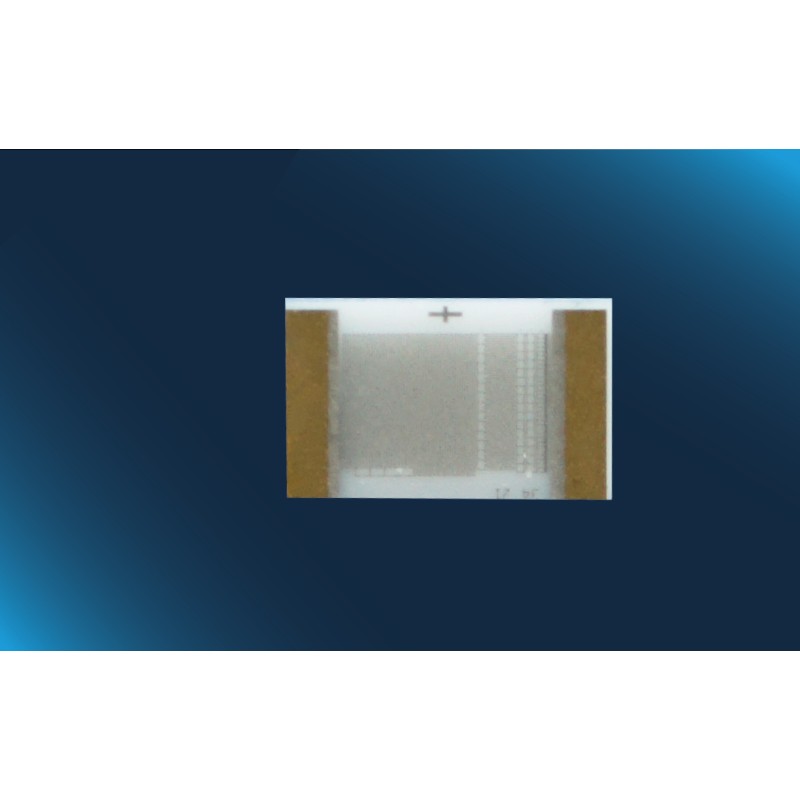

FlipChip Pt 1000 0603 3FC class F0.15, taped
FC (FlipChip) Platinum 1000 Ohm RTD component, -50 °C to +250 °C, FC 0603, taped only (without reel), sensor side down
Product Name
P1K0.0603.3FC.A.S
Nominal resistance
100 Ω at 0 °C
Operating temperature range
-50 °C to +250 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
1.5 x 0.75 x 0.4 mm
Tolerance/class
IEC 60751 F0.15 (IST AG reference class A)
Connection type
Bondable and solderable pads (Au)
Packaging
Taped only, sensor side down (without reel)
155603
1543603
