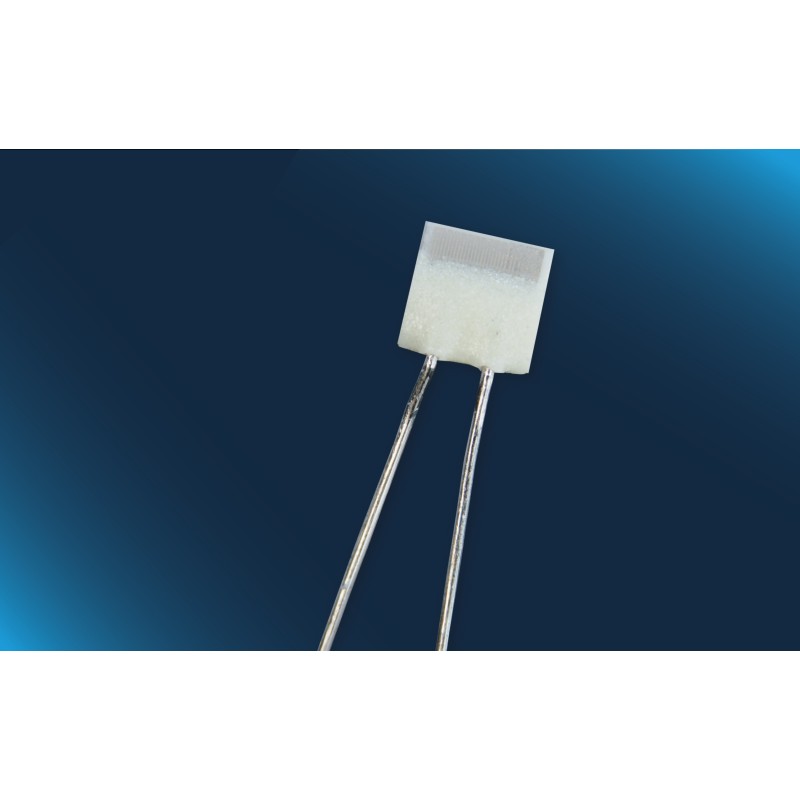

Pt1000 class F0.15 up to 600 °C with optimized ESD design
Pt1000 RTD, ESD-optimized, -200°C to +600°C with 10mm Pt/Ni wire
Temperature sensor , 2 x 2 x 1.1 mm,10mm long Pt/Ni wire
Product Name
P1K0.202.6W.A.010
Nominal resistance
1000 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
1.8 x 2.0 x 1.1 mm
Tolerance/class
IEC 60751 F0.15 (IST AG reference class A)
Connection type
Pt/Ni-wire, Ø 0.2 mm
Wire length
10 mm
Special
ESD optimized design (IEC/EN 61000-4-2)
Packaging
Blister
replaces former 100896
155773
155773
