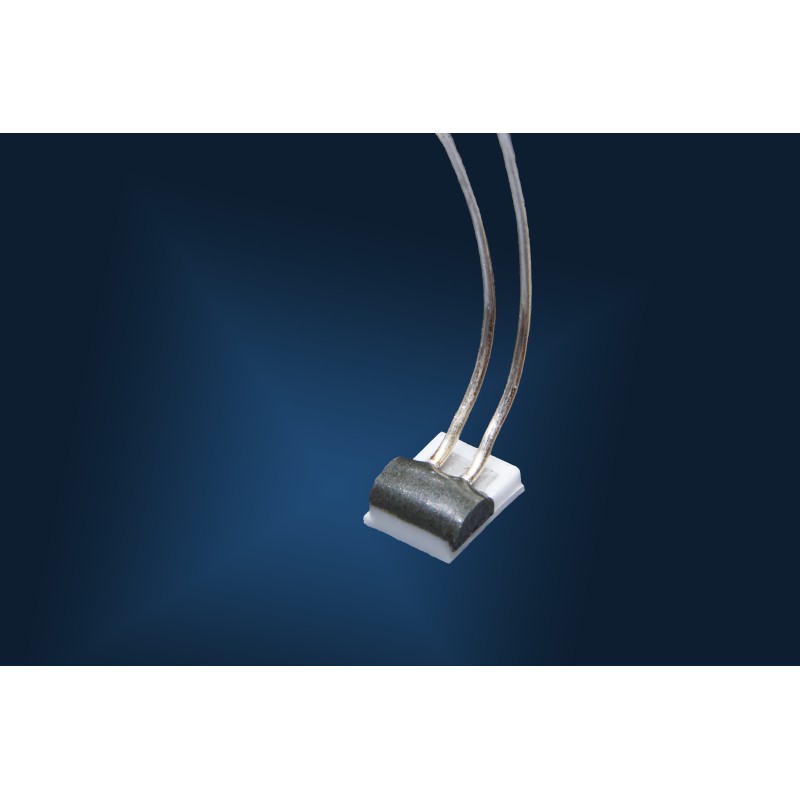

Pt100 class F0.3 with inversed wires and metallized backside
Temperature sensor element Pt 100, temperature range -50 °C to +150 °C, 3.0 x 0.8 mm, 100 mm wires
Thin-film platinum 100 Ohm RTD component with black PFTE insulated platinum wires
Pt100, -200 °C to +300 °C, 2.3 x 2.0 mm, class F0.3, 10 mm inversed wires, metallized backside
Thin-film platinum 100 Ohm RTD component with inversed wires and metallized backside for excellent thermal coupling - ideal for mounting to the bottom of a tube or a blind hole and for applications with limited space.
Product Name
P0K1.232.3K.B.010.M.U
Nominal resistance
100 Ω at 0 °C
Operating temperature range
-200 °C to +300 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.3 x 2.0 x 1.3 mm
Tolerance/class
IEC 60751 F0.3 (IST AG tolerance class B)
Connection type
Ag-wire, Ø 0.25 mm
Wire length
10 mm
Special
Metallized backside, inversed wires
101045
101045
