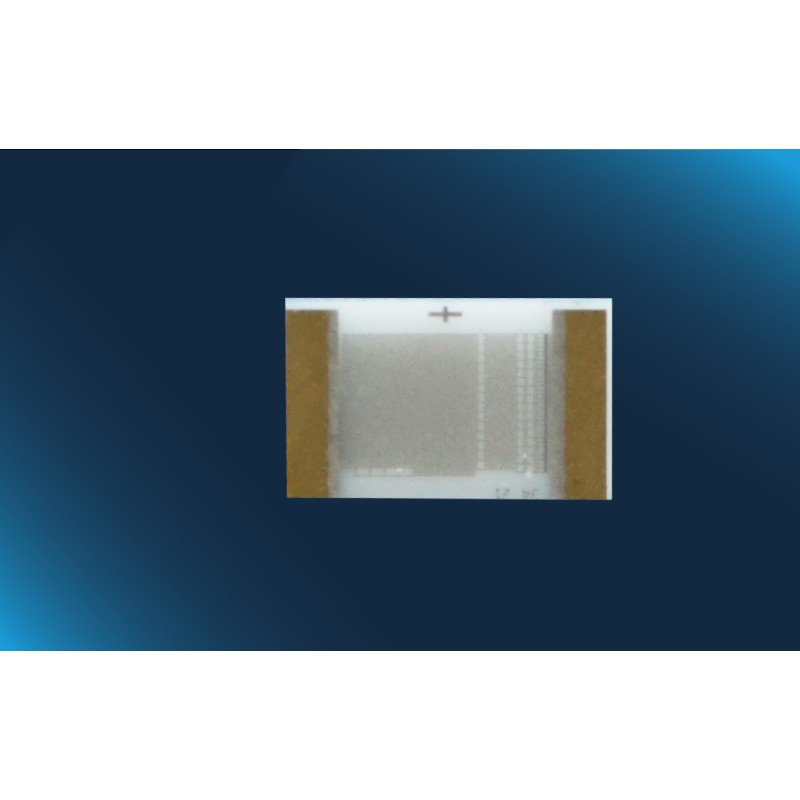

Pt100 FlipChip class F0.3
Bondable and solderable temperature sensor, range -50 °C to +250 °C, FC 0805
FC (FlipChip) platinum 100 Ohm RTD component
Product Name
P0K1.0805.3FC.B
Nominal resistance
100 Ω at 0 °C
Operating temperature range
-50 °C to +250 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.0 x 1.2 x 0.4 mm
Tolerance/class
IEC 60751 F0.3 (IST AG tolerance class B)
Connection type
Bondable pads (Au)
