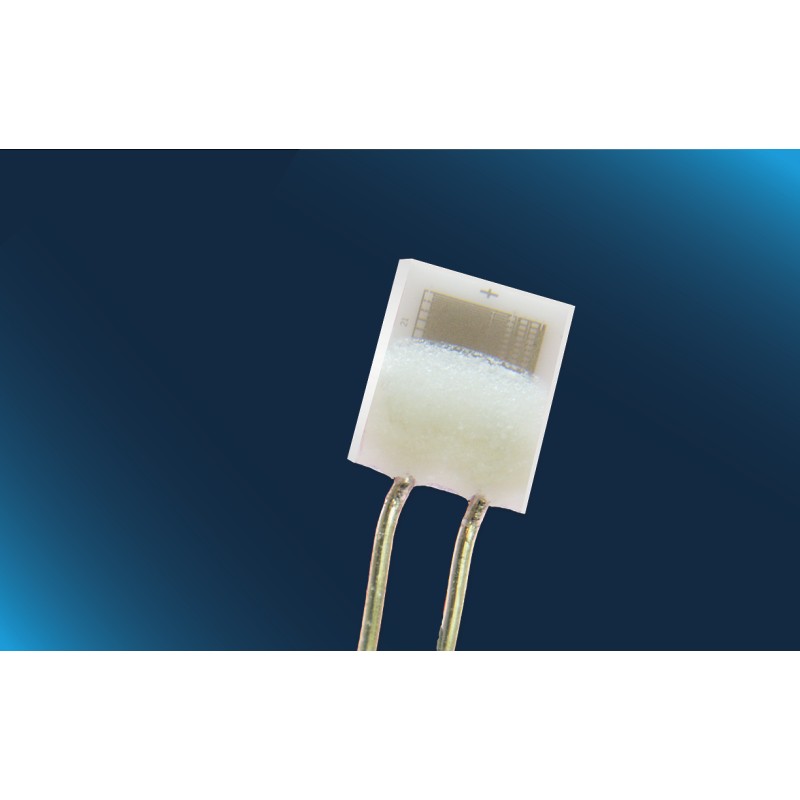

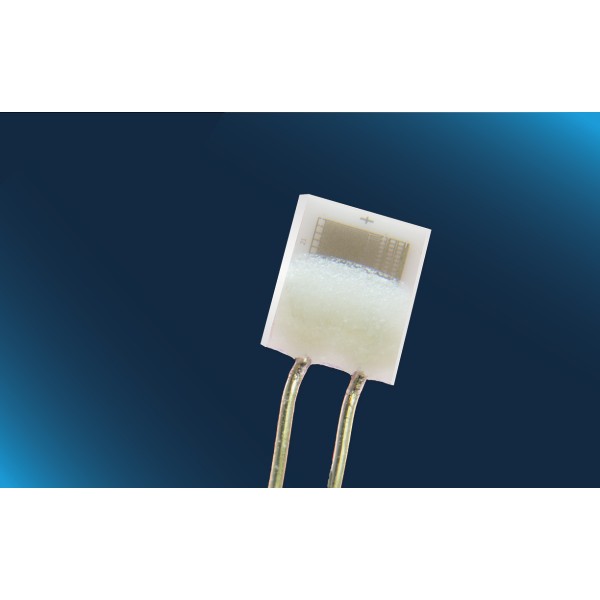

Standard Pt1000 (232) class F0.1
Thin-film platinum 1000 Ohm RTD component
Temperature sensor -200 °C to +600 °C, 2.3 x 2.0 mm, 10 mm wires
Product Name
P1K0.232.6W.Y.010
Nominal resistance
1000 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.3 x 2.0 x 1.1 mm
Tolerance/class
IEC 60751 F0.1 (IST tolerance class Y)
Connection type
Pt/Ni-wire, Ø 0.2 mm
Wire length
10 mm
Packaging
Blister
010.00238
100257
100257
