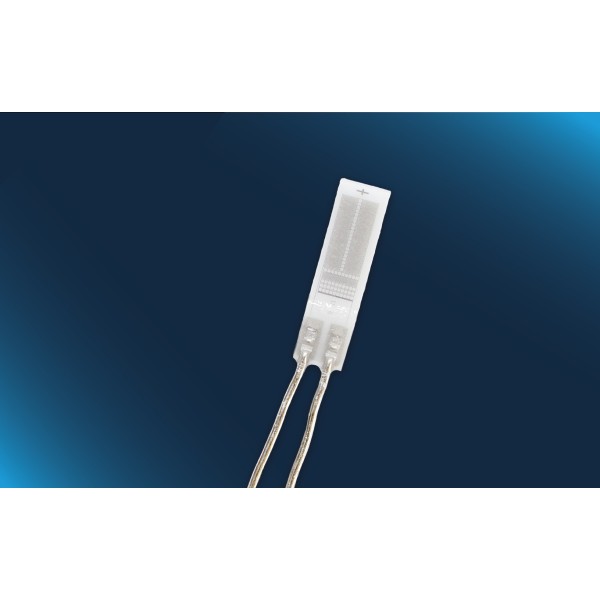

Pt1000 class F0.15 with Pt wire, with optimized ESD design
Temperature sensor for narrow spaces, ESD-optimized, -200 °C to +600 °C, 3.0 x 0.8 mm, 7 mm wires
Thin-film platinum 1000 Ohm RTD component
Product Name
P1K0.308.7W.A.007
Nominal resistance
1000 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
3.0 x 0.8 x 0.6 mm
Tolerance/class
IEC 60751 F0.15 (IST AG reference class A)
Connection type
Pt-wire, Ø 0.15 mm
Wire length
7 mm
Special
ESD optimized design (IEC/EN 61000-4-2)
Packaging
Blister
replaces former 100514
156538
156538
