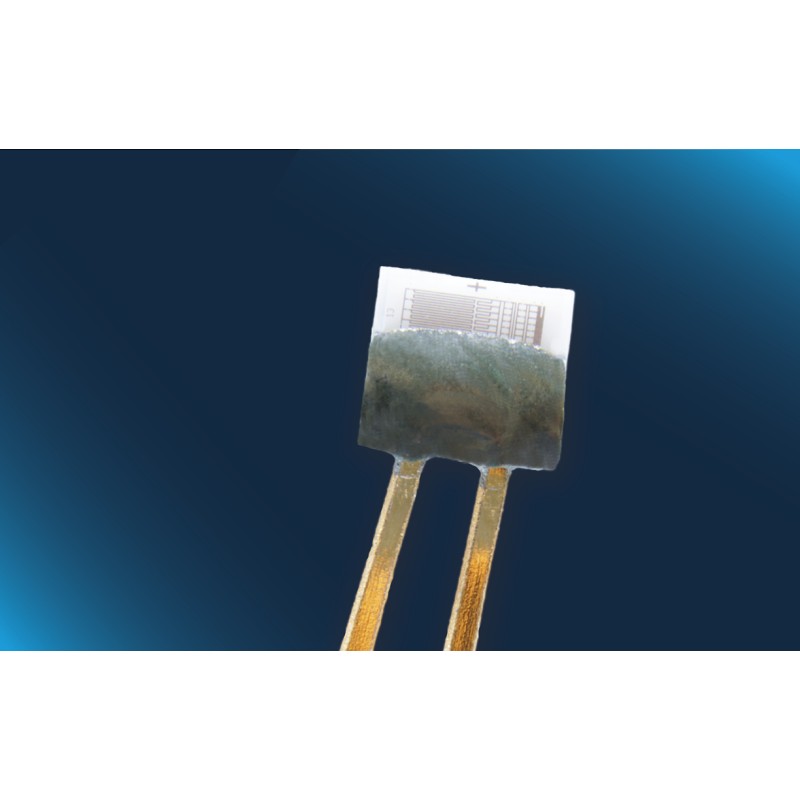

Pt100 (202) class F0.15 with flat wires, with optimized ESD design
Thin-film platinum, ESD-optimized, 100 Ohm RTD component
Platinum sensor with flat Gold-coated Nickel wires with long-term stability and low self-heating
Product Name
P0K1.202.3FW.A.007
Nominal resistance
100 Ω at 0 °C
Operating temperature range
-200 °C to +300 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.0 x 2.0 x 1.3 mm
Tolerance/class
IEC 60751 F0.15 (IST AG reference class A)
Connection type
Au-coated Ni flat wire, 0.2 x 0.4 mm (only < 600°C)
Wire length
7 mm
Special
ESD optimized design (IEC/EN 61000-4-2)
Packaging
Blister
replaces former 100878
155576
155576
