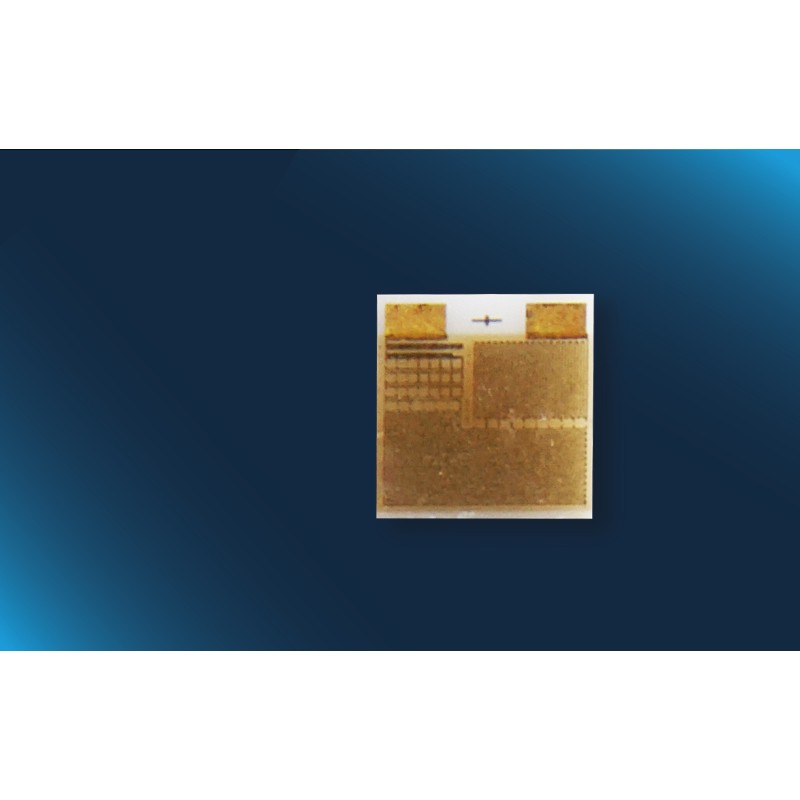

BondSens Pt1000 class F0.3
Bondable platinum 1000 Ohm RTD component, temperature range -50° C to 150° C, taped on reel (sensor side up)
IST AG's smallest temperature sensor with 0.1 x 0.2 mm (LxW) bondable contacts
Product Name P1K0.0707.3FC.B.T.S
Nominal resistance
1000 Ω at 0 °C
Operating temperature range
-50 °C to +150 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
0.75 x 0.75 x 0.3 mm
Tolerance/class
IEC 60751 F0.3 (IST AG tolerance class B)
Connection type
Bondable pads (Au)
Packaging
Taped on reel
