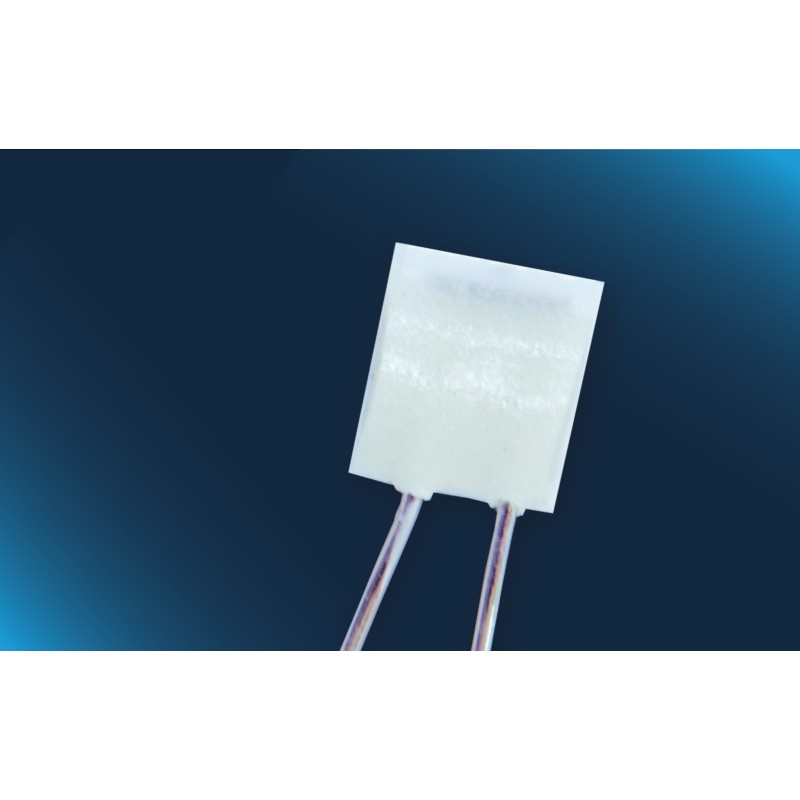

Pt100 class F0.3 with Pt/Ni wire
Thin-film platinum 100 Ohm RTD component
Platinum temperature sensor platinum/nickel wires on thin substrate
Product Name
P0K1.232.6W.B.010.D.S
Nominal resistance
100 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.3 x 2.0 x 1.05 mm
Tolerance/class
IEC 60751 F0.3 (IST AG tolerance class B)
Connection type
Pt/Ni-wire, Ø 0.2 mm
Wire length
10 mm
Special
On thin substrate (T: 0.4 mm), separation by snapping
Packaging
Blister
