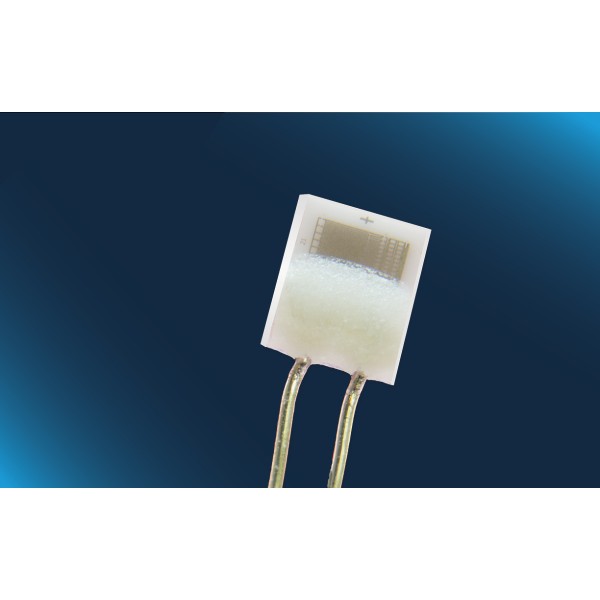

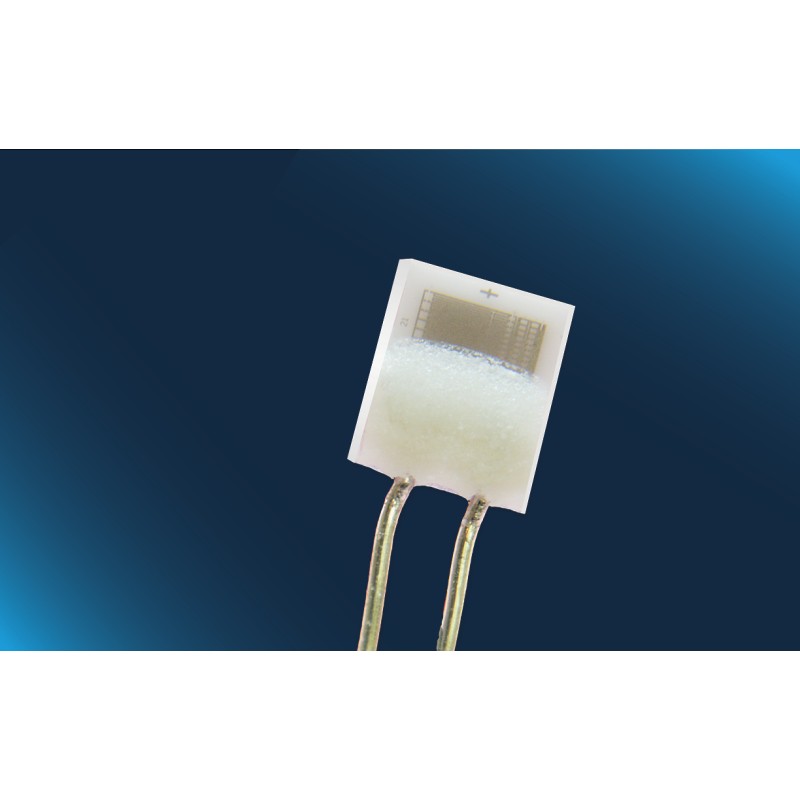

Standard Pt1000 (232) class F0.3, with ESD optimized design
Thin-film platinum, ESD optimized, 1000 Ohm RTD component
Temperature sensor -200 °C to +600 °C, 2.3 x 2.0 mm, 10 mm wires
Product Name
P1K0.232.6W.C.010
Nominal resistance
1000 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.3 x 2.0 x 1.1 mm
Tolerance/class
IEC 60751 F0.6 (IST tolerance class C)
Connection type
Pt/Ni-wire, Ø 0.2 mm
Wire length
10 mm
Special
ESD optimized design (IEC/EN 61000-4-2)
Packaging
Blister
replaces former 100255
155765
