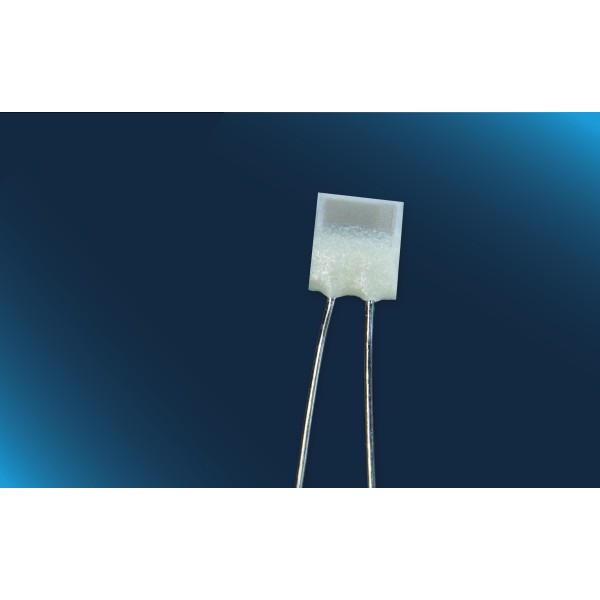

Pt100 class F0.15 up to 400 °C with optimized ESD design
Pt100 Ohm -200°C to +400°C, 7mm long Ag wire

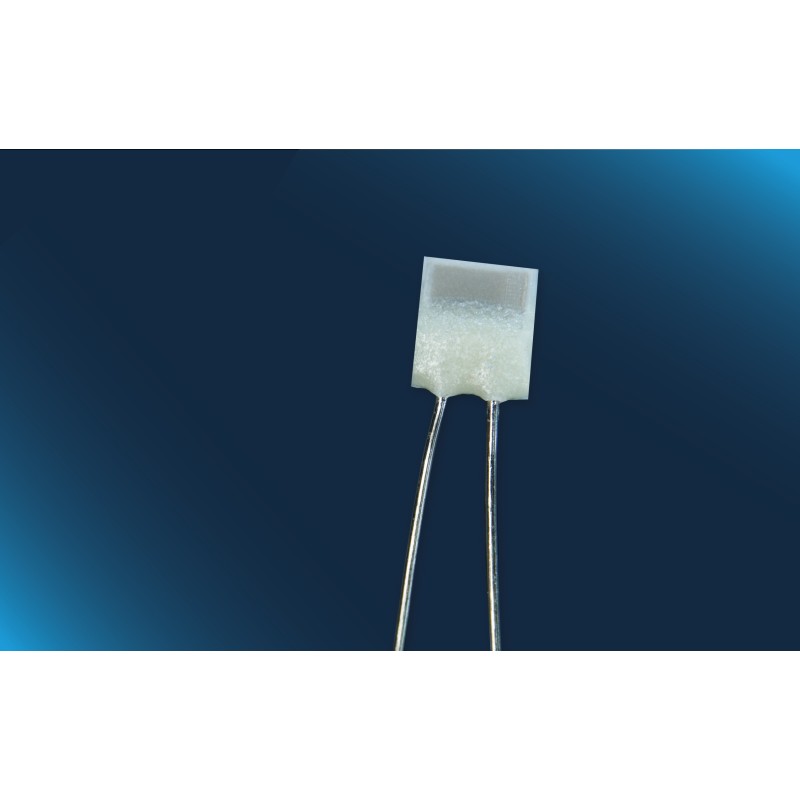

Thin-film platinum 100 Ohm RTD component, 2 x 2 x 1.3 mm,
Product Name
P0K1.202.4W.A.007
Nominal resistance
100 Ω at 0 °C
Operating temperature range
-200 °C to +400 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.0 x 2.0 x 1.3 mm
Tolerance/class
IEC 60751 F0.15 (IST AG reference class A)
Connection type
Ag-wire, Ø 0.25 mm
Wire length
7 mm
Special
ESD optimized design (IEC/EN 61000-4-2)
