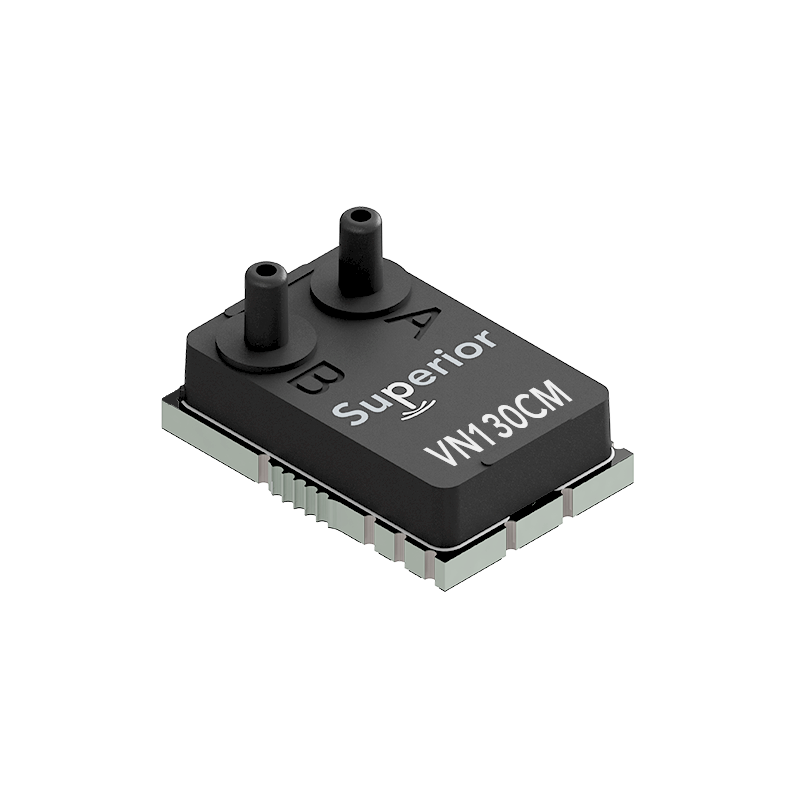

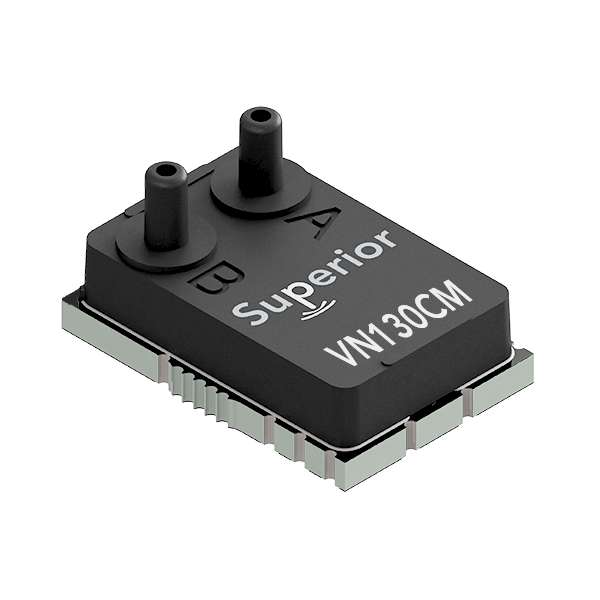

Ventilator Pressure Sensor: VN130CM

Based on Superior’s NimbleSense™ architecture, the VN Series is a comprehensive set of pressure sensors for ventilator and high-flow oxygen devices. The family of products includes sensors for measuring inlet (wall and tank), flow, inspiratory, expiratory, and barometric pressures. The VN Series utilizes Multi-RangeTM technology to create the industry’s widest dynamic range, eliminating the need for fine-tuning or additional calibration.

The VN Series combines an advanced piezoresistive sensing element with integrated amplification, ADC, DSP, and a digital interface. Advanced digital processing enables new functionality, thus simplifying system development, adding manufacturing ease, and increasing reliability.

With optional advanced digital filtering customization and a 3-mode pressure switch, the VN Series is more than a pressure sensor – it is a pressure-sensing sub-system.

Finally, the VN Series eliminates the need for the ventilator to oversample sensor outputs, as the sensor oversamples at 12kHz and includes internal bandwidth filters to provide a clean > 1kHz data rate.

Constructed with a high-reliability plastic enclosure, the VN Series provides the ideal combination of very high performance and reliability while ensuring customers have a high volume, cost-effective solution optimized for ventilators and high-flow oxygen devices.

 Family of inspiratory, expiratory, flow, inlet & barometric pressure sensors

 Highly integrated sensors with ADC and DSP

 Output Data Rate up to 1.09kHz

 24-bit resolution (each selected range)

 Pure O2 compatible

 Up to 8 Selectable Pressure Ranges per Device

 Exceptional Zero Stability

 Selectable Bandwidth Filter from 1.0Hz to 500Hz

 Total Error Band less than 0.15% FSS

 Very High Accuracy ±0.05% of Selected Range

 Long Term Stability ±0.10% FSS

 Sensors for flow are available in high and extreme resolution

 Inlet & Barometric pressure sensors include silicone gel protection

 Temperature Compensated 0°C to 50°C

 Fully Integrated Compensation Math
